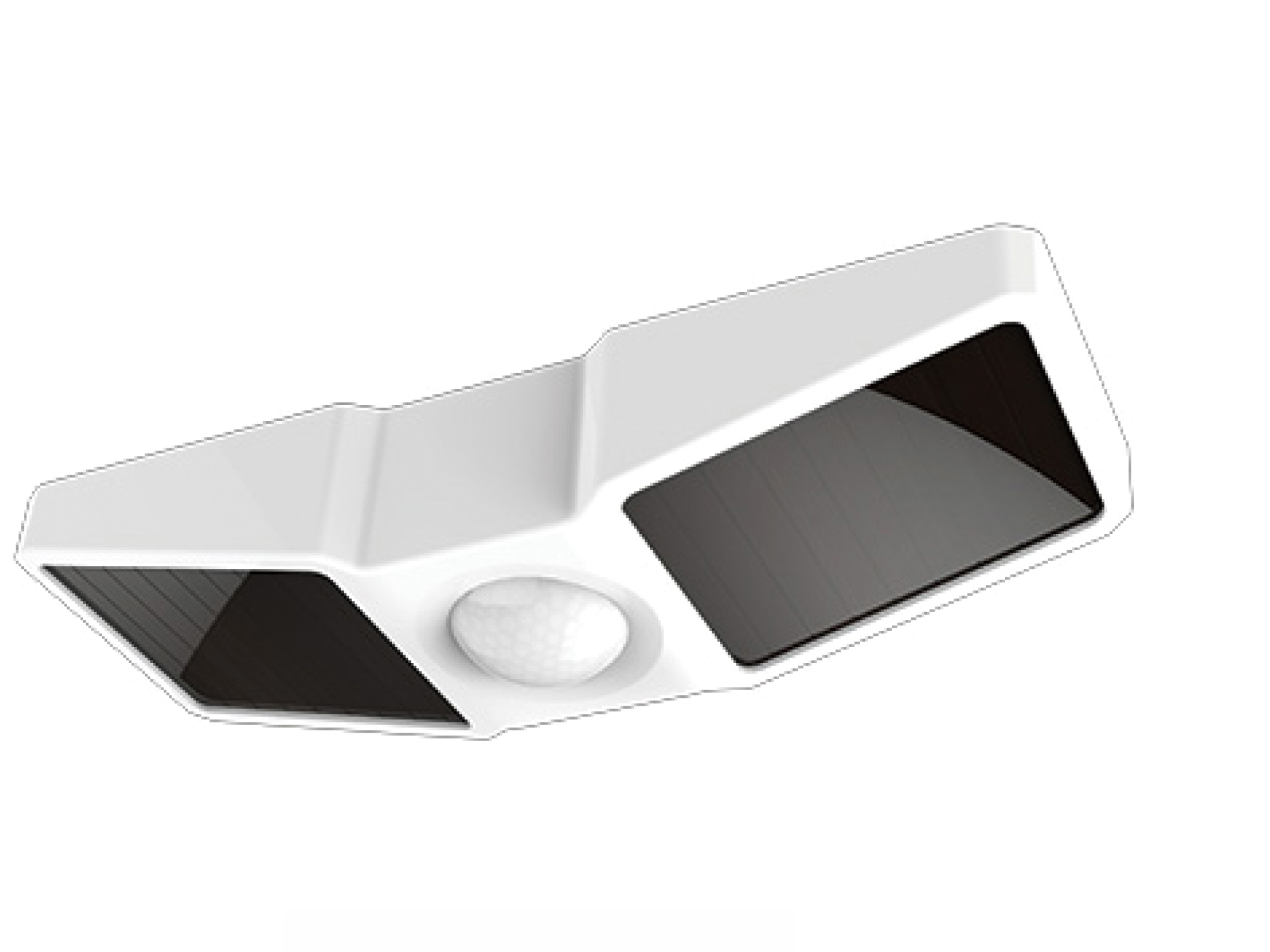

LD-OSS/C

Solar wireless sensors use indoor light as an energy source, an optional external power supply or a long acting battery, to detect human activity passively. And transmit wireless signals, which can be used to automatically control the opening and closing of lights, no air conditioner shutdown, curtain opening and closing functions, making the building more intelligent and energy saving.

Basic parameter
Minimum operating illuminance:    >50lux
Dark running time:    72 hours (charging finished)
Detection angle:    120°
Illumination range:    20~1000lux
Working temperature:    -10℃ to +60℃
Operating humidity:    0% to95% r.h.,Gel free
Wireless parameter
Antenna:    Built in antenna
Wireless standard:    868MHz
Modulation demodulation mode:    ASK（FSK）
Transmission distance:    outdoor300M，indoor30M
EEP:    A5-08-02
Electrical performance
Power supply:    Interior light, optional Li-SOCI2 battery (1/2AA), external power supply (2.5V~24V)
Full of time:    8hour@200lux
Mechanical parameter
Size:    210*69*45m
Install:    The adhesive or screw mounting
Material Science:    PC，white

LD-OSB/W

A human infrared sensor with a built-in lithium secondary battery for passive infrared body detection in an environment with insufficient light. Powered by an internal battery or powered by an external power supply, passive detection of human activity. And transmit wireless signals, can be used to automatically control the lights open and close, air-conditioning no one shutdown, curtain opening and closing functions, compact, intelligent energy saving.

Basic parameter
Detection angle:    120°
Range of illumination:    20~1000lux
Working temperature:    -10℃ to +60℃
Operating humidity:    0% to95% r.h.,non-condensing
Message minimum interval:    -25℃ to +65℃，Less than 90% moisture, no condensation
Wireless parameter
Antenna:    Built in antenna
Wireless standard:    868MHz
Modulation demodulation mode:    ASK（FSK）
Transmission distance:    Outdoor 300M, indoor 30M
EEP:    A5-08-02
Electrical performance
Power supply:    Li-SOCI2 battery (1/2AA)     external power supply (2.5V~24V)
Battery life:    3 years
Mechanical parameter
Shell size:    Outer dimension：57*57*39.5mm
Installation method:    Bottom: adhesive or screw mounting
Shell material:    PC，white
